Long Range Impinj R2000 Chip UHF RFID Reader Module With Four Ports
M2240 UHF RFID reader module, based on R2000 Chip platform of the world leading RFID Company IMPINJ, is developed by Sanray Ltd., it is a high performance UHF RFID reader module designed specifically for the complex RFID application environment. Equipped with four MMCX antenna connectors, M2240 provides a feature-rich, standardized SDK development kit so that users can develop high-performance reader device in a short period according to the project requirements. The maximum output power of this module is 30dBi, together with the 8dBi gain antenna, taps reading distance can reach more than 10m. It supports intensive reading mode and a greater than 400tags / s tag identification rate can be achieved.
This product is suitable for RFID intensive and more challenging environment and required a higher reading/writing performance, such as warehousing, logistics, production line management, etc..
Advantages of 4 port UHF RFID Reader Module M2240
1. Employed IMPINJ R2000 RF Chips, up to 110dbm receiving sensitivity and the high performance makes this module more suitable for harsh application environment.
2. Remarkable performance with 6dbi RF antenna, can achieve a reading distance over 8m per single tag.
3. Remarkable performance in intensive taps reading, can attain a taps identification rate of 400tags/s.
4. Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
5. Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
6. The use of carrier wave cancellation technology makes the tag reading more accurate and the reading scope wider.
7. The smallest module volume in the same field and supply power of 3.7V, it is especially suitable for handsets and other mobile devices.
8. Enhance noise suppression for reliable data capture.
9. High precision return signal strength (RSSI)
Technical Specifications of 4 port UHF RFID Reader Module M2240
| NO | | Parameter |
| 1 | Tap Protocol | ISO18000-6C |
| 2 | Working Frequency | 840~960MHz Support China2, China1, US, EU, Korea, Japan, etc. |
| 3 | RF Chip | IMPINJ R2000 |
| 4 | Power | Software adjustable,step interval 1.0dB, maximum 30dBm |
| 5 | Mechanical Spec | 44*79*7mm(contains cooling fin and shielding case) |
| 6 | Power Supply | 5.0V |
| 7 | Electric Current | Maximum Power Output: 1.5A,STDBY≤50 mA,Sleep≤1 mA |
| 8 | RF port VSWR | ≤1.5 |
| 9 | Maximum read distance | ≥8m(With 6dBi antenna) |
| 10 | Working Temperature | -25~+65°C |
| 11 | Storage Temperature | -40~+80°C |
Interface Definition of 4 port UHF RFID Reader Module M2240
| PIN | Interface signals |
| 1 | VCC |
| 2 | VCC |
| 3 | GND |
| 4 | GND |
| 5 | EN |
| 6 | WIEGEND1 |
| 7 | WIEGEND2 |
| 8 | GPIO3 |
| 9 | UART_RX |
| 10 | UART_TX |
| 11 | USB_D+ |
| 12 | USB_D- |

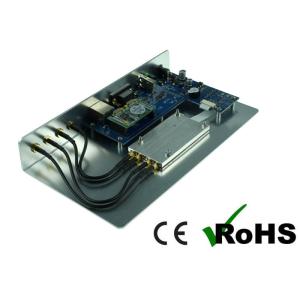

Overview of 4 port UHF RFID Reader Module M2240
Please kindly note: Developing isn't included in standard version of module,but it's optional with extra cost.
